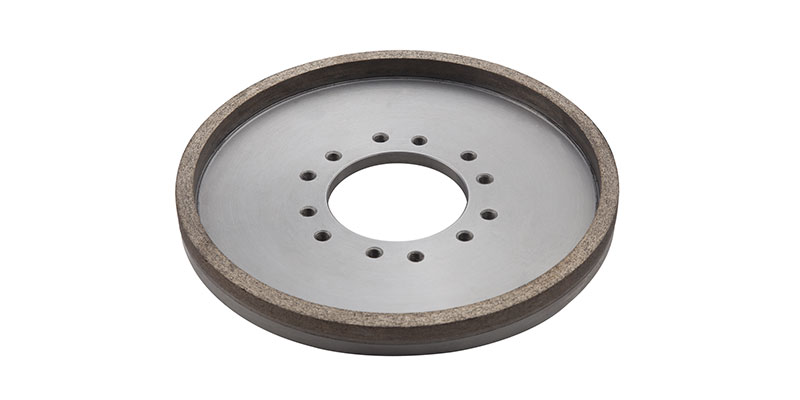

Continuous Squaring Wheel For Ceramic (DRY/WET)
- Application
This product can use for all kinds of squaring machine for ceramic tile. It is mainly used to correct the four sides of ceramic tiles and obtain the set size. The product is a necessary tool for all kinds of large-scale ceramic crystal tiles, ceramic tiles and polished tiles edging. The product has the characteristics of wear-resisting, long life, good sharpness, energy saving, low noise, stable quality and good processing effect. According to its use requirements, cutter head structure is divided into segment type and continuous type. It is applicable to all kinds of water mill processing technology of polished tiles, glazed tiles, rustic tiles with various water grinding processes.
- Parameters
Segment | Diameter | Seg.H* Seg.T | Grit | Application |
Continuous | φ150(6”) | 12*14 | D151 D181 D252 D301 D427 D501 |
Wet/Dry Use |
12*22 | ||||
14*16 | ||||
17*10 | ||||
22*12 | ||||
30*10 | ||||
30*15 | ||||
30*18 | ||||
55*12 | ||||
φ200(8”) | 10*12 | |||
10*14 | ||||
12*20 | ||||
25*15 | ||||
φ250(10”) | 10*12 | |||
φ300(12”) | 5*10 | |||
10*13 |
