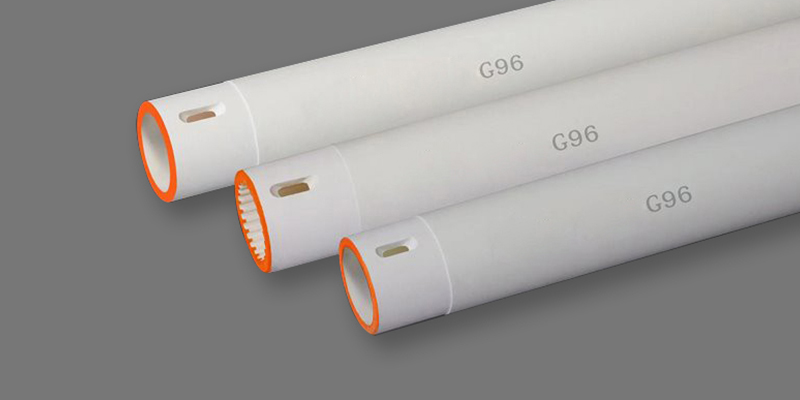

SUNVIN high temperature ceramic roller with high density and high loading at high temperature. Also has long service life.
Send Inquiry
Features
SV-G96 high temperature ceramic roller is very suitable for large size porcelain tile, polishing glazed tiles. SV-G96 high temperature ceramic roller with high capacity working condition. Manufactured with high quality and the best optimized category raw materials from oversea, The bending strength of this roller can reach almost 75MPa. SV-G96 high temperature ceramic roller With the lower creep coefficient, anti-corroded, and excellent thermal shock resistance, this series of roller remains intact in the test from 1350℃ to cold water.
Performance Parameters
| ITEMS | SV-G96 |
| Al2O3 CONTENT | 78% |
| RATE OF WATER ABSORPTION | 4~6 % |
| BENDING STRENGTH | 60~75MPa |
| BULK DENSITY | 2.70-2.90 g/cm3 |
| THERMAL EXPANSION COEFFICIENT | 6.0-6.5 (X10-6/°C) |
| THERMAL SHOCK RESISTANCE | VERY GOOD |
| MAX. SERVICE TEMPERATURE | 1350°C |
| MARKING COLOR | Orange |
| SPECIFICATION | O.D. 20-120mm, Length |
| Up to 5500mm |
